Detailed Photos
Product Description
Introduction:

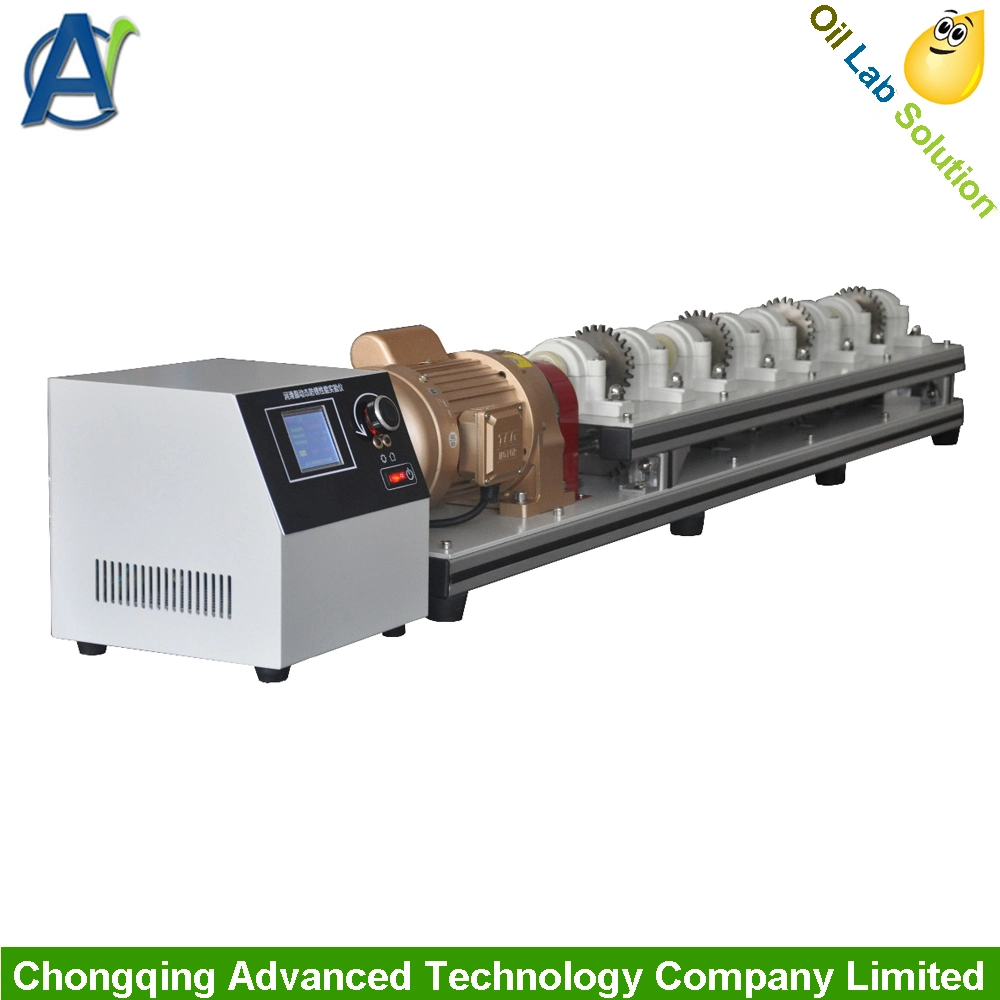

This test method covers the determination of corrosion preventive properties of greases using grease-lubricated ball bearings under dynamic wet conditions.
Woring principle:measure the grease's ability to protect the bearing from corrosion in the presence of water. The two sets of grease-coated bearings were partially immersed in water and rotated at a speed of 80 rpm during the running and stationary periods. At the end of the test, check the rust of the outer ring of the bearing.
Features:
1.EMCOR Corrosion-Preventive Properties Tester is supplied with standard test bearing,30*72*19mm3;
2.Inspect bearing with reflector without magnification function,which is easy to operate
3.Big torque motor is easy to drive.
4.Digital display working and stop time.
5.Motor is automatically stopped when test is finished.
5.This EMCOR Corrosion-Preventive Properties Tester can make solid and dynamic tests.
Specifications of EMCOR Corrosion-Preventive Properties Tester:
| Applicable standards | ASTM D6138 |
| Rotating method | AC motor drive |
| Rotating speed | 80~85r/min |
| Timing method | Digital timer |
| Start and Stop time | set at random |
| Power supply | 220V 50Hz |
| Total power consumption | 600W |

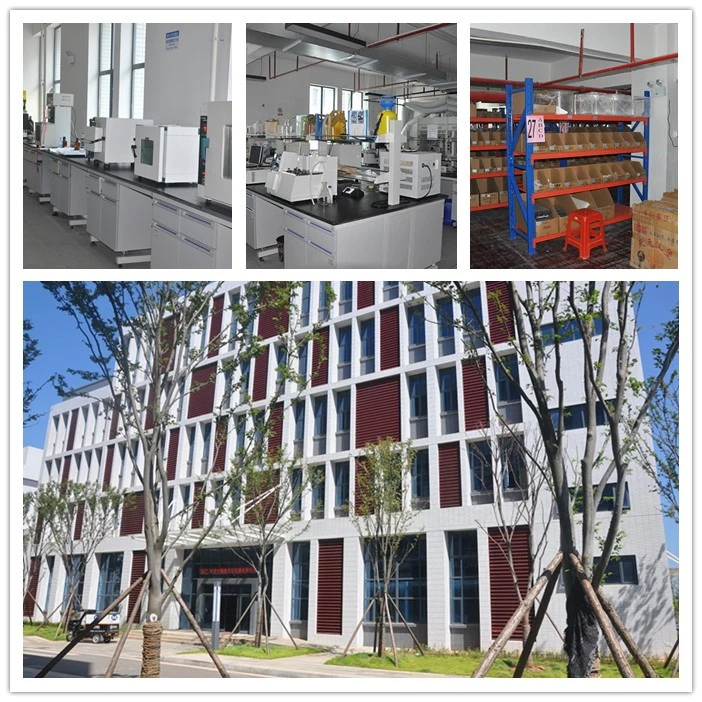

Company Profile
